Mister Art

Brand : CARPIGIANI


The laboratory of ideas built on your creativity

The new technology that fills* your business with life

*  fillings  in  cakes,  stick  treats  and many other ideas.


แบ่งปันให้เพื่อนของคุณ

Overview
Quality

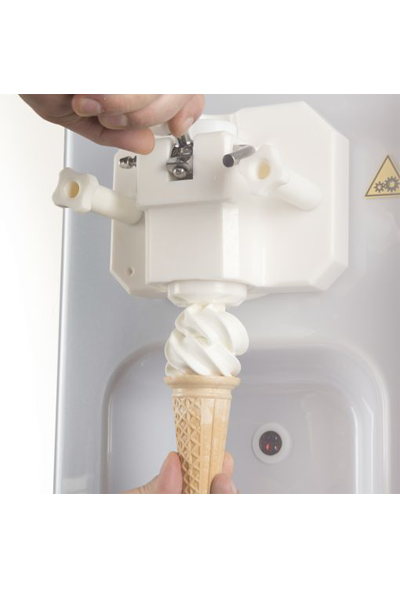

Mister Art can produce gelato and sorbets, create Crystal for filling large cake molds and narrow stick gelato molds, as well as gelato pastries like single portions of gelato and spumoni, and fresh pastries like mousses and Bavarian creams.

Performance

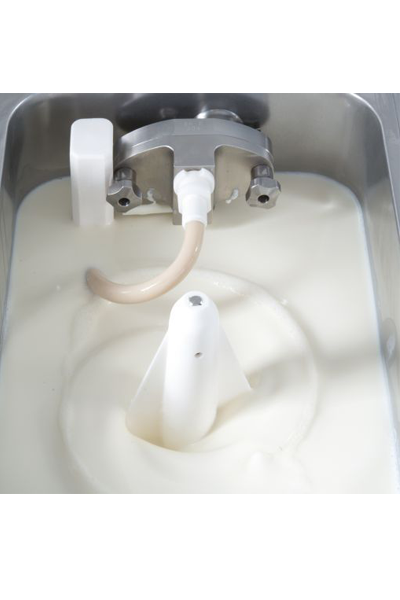

gear pump patented by Carpigiani ensures the best structure and control of overrun. Mister Art's tank, motor, and cylinder continuously produce the product you want.

Convenience

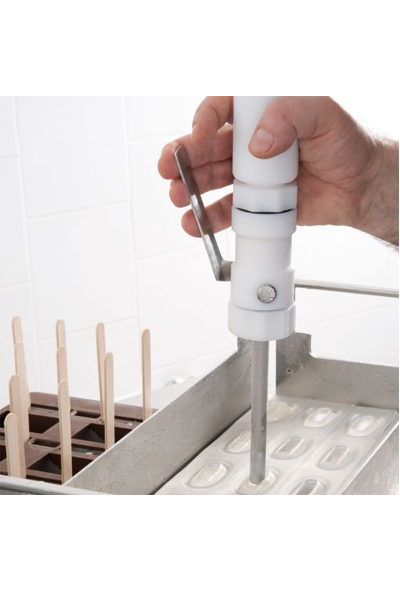

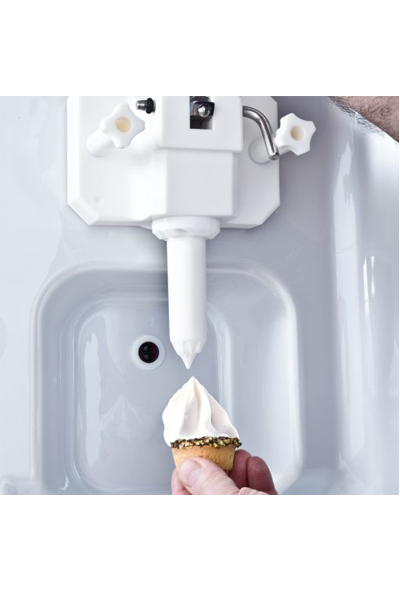

Mister Art's door is designed for the application of terminals to facilitate filling: 2 for gelato pastries,  2 for fresh pastries, 1 hose with a Crystal portioning pistol.

Recipe book supplied.

Savings

With Mister Art, you can do your job easily and save time.

Safety

Accident prevention thanks to rounded corners.

Optional Teorema: monitoring and diagnosis via the internet for easier assistance.

Hygiene

Self-pasteurizing system to sanitize all parts of the machine that come into contact with the product.

Heated cleaning of the cylinder to simplify cleaning operations.

Brush for cleaning the hose.

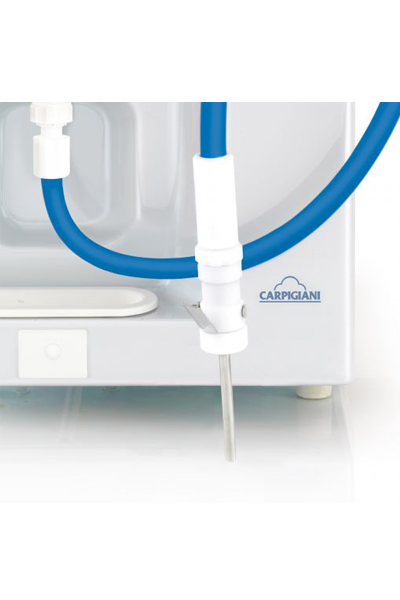

Optional Sprayer with spiral hose and quick coupling.

Technical Characteristics
Pump Gears

Yes

Tank Capacity
Lt

12

Hourly production
75g Gelato portions

270

85cc Stick treats

320

Electrical
Condenser

Air or Water**

Hz

50*

Ph

3*

Volt

400*

Fuse Size A

10

Rated Power Input kW

2,4

Dimensions
Net Weight kg

140

Air-cooled version | W x D x H cm

50,5 x 75,5 x 83

Water-cooled version |W x D x H cm 50,5 x 67,5 x 74
Note

Note      * Other voltages and cycles are available with additional charge. ** Water-cooled versions available with additional charge. Production will vary depending on the ingredients used. Mister Art is produced by Carpigiani according to UNI EN ISO 9001 Certified Quality System. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary.

SPEC SHEET
