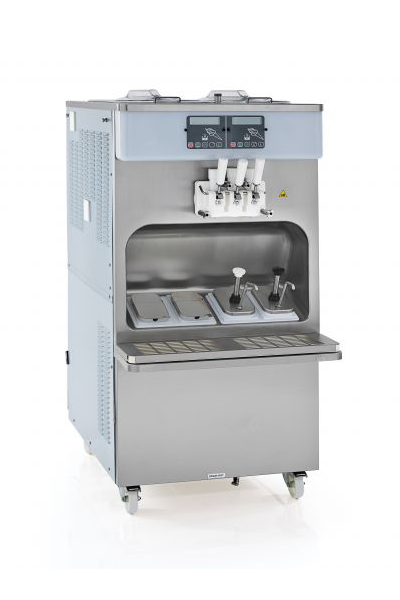

K503

Brand : CARPIGIANI

Twin twist floor standing machine

Perfect for customers looking for a high performance machine.

This machine guarantees versatility and flexibility with excellent production performances

Two motors and two compressors
Thanks to the two combined motors with the two compressors, which are both independent and have separated controls, they allow you to use only one side of the machine

Overrun and consistency control
Different consistency control settings for various mix types

แบ่งปันให้เพื่อนของคุณ

Standard configurations	Self-pasteurization With our self-pasteurization system the machine can be cleaned and disassembled only 9 times per year
Optional configurations	Teorema Remote Control It gives very important info about the machine, it facilitates the service system and helps the cleaning schedule Self closing device The dispensers close automatically stopping the flow of ice cream, eliminating any waste and preventing mess Dry Filling System Possibility of preparing the mix directly in the hopper by adding water and dry mix
Features & Benefits	Independent refrigeration system Allows to work with different products in the two cylinders Stainless steel pressurized gear pump in Advanced Thermoplastic Polymer (P model) The pump ensures the best ice cream texture, quality and high overrun, adjustable from 40% to 80% Interactive display Communicates with the operator delivering instructions and data regarding machine performance Removable pump shaft For easier cleaning procedures, maximum hygiene and Reliability Tank agitators Prevent product stratification and helps to reduce foam by maintaining a fluid consistency High efficiency beaters Stainless steel beaters with double spirals and idler for the Pump version Adjustable ice cream flow Adjustable product flow to meet your specific dispensing speed and volume requirements Fountain pump and covered containers for toppings Two fountain pumps for hot topping and two covered containers for cold toppings Direct expansion cooling cylinders Optimize refrigeration efficiency for fast freeze downtime, less waste of product ensuring higher quality and energy saving Defrost system Possibility to heat the cylinders to simplify the cleaning procedure

Technical Characteristics
Flavour	2+1
Mix Delivery System	Pump
Cylinder Capacity
Lt	1,75
Tank Capacity
Lt	20+20
Hourly production
75 gr portions	800 (production capacity depends on the mix used and the room temperature)
Electrical
Cooling System	Air
Hz	50*
Ph	3*
Volt	400*
Fuse Size A	16
Rated Power Input kW	5.2
Refrigerant	R452 (alternative solutions available)
Dimensions
W x D x H cm	72,3 x 109,8 x 152
Net Weight kg	410
Note	* other voltages and cycles available upon request. K503 is produced by Carpigiani with Quality System UNI EN ISO 9001. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary.
