161 T G SP

Brand : CARPIGIANI


Compact, self-pasteurizing soft gelato machine.

Quick and easy to maintain thanks to the gravity fed cylinder system

Compact: Now even cafés, restaurants, pastry shops, and gelato soft shops with limited space can delight customers with an excellent gelato or a delicious frozen yogurt, or even a fantastic sorbetto, all thanks to the greatly reduced dimensions of the machine.

แบ่งปันให้เพื่อนของคุณ

Overview
Standard configurations

Self-pasteurization

With our self-pasteurization system the machine can be cleaned and disassembled only 9 times per year

Self closing device

The dispenser closes automatically stopping the flow of ice cream, eliminating any waste and preventing mess

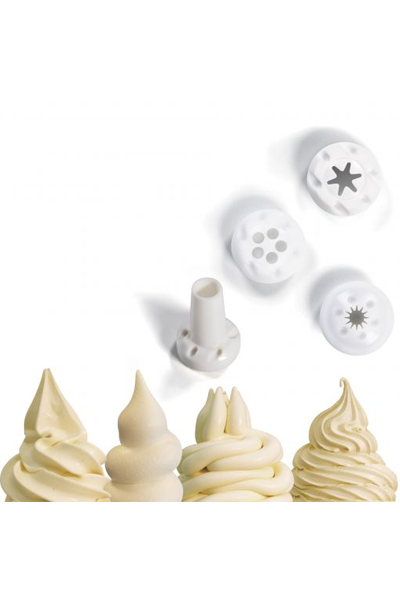

Single portions dispensing head

With interchangeable nozzles to make single portions and delights

Optional configurations

Teorema Remote Control

It gives very important info about the machine, it facilitates the service system and helps the cleaning schedule

Features & Benefits

Tank agitator

Prevents product stratification and helps to reduce foam by maintaining a fluid consistency.

Gravity fed system

Air is added to the mix through the holes in the injection needle for a dry, firm gelato having an overrun of up to 40%.

Direct expansion cooling cylinder

Optimizes refrigeration efficiency for fast freeze downtime, less waste of product ensuring higher quality and energy saving.

High efficiency beater in POM

For a dry, compact gelato.

Defrost system

Possibility to heat the cylinder to simplify the cleaning procedure.

Adjustable ice cream flow

Adjustable product flow to meet your specific dispensing speed and volume requirements.

Interactive display

The machine displays operational parameters: mix temperature, gelato consistency, dispenser ready, and insufficient mix, etc.

Easy to position

Thanks to the innovative solution the machine can be placed next to other equipment reducing wasted space.

Technical Characteristics
flavour

1

Mix Delivery System

Gravity

Cylinder Capacity
Lt

1,35 lt

Tank Capacity
Lt

5

Hourly production
Kg

15 kg/hr (production capacity depends on the mix used and the room temperature)

Electrical
Cooling System

Air

Volt/Hz/Ph

230/50/**other voltages and cycles available upon request

Fuse Size A

16 A

Rated Power Input kW

2,3 kW

Refrigerant
Refrigerant

R452 (***alternative solutions available)

Dimensions
Net Weight kg

95 kg

Note

The 161 T G SP is produced by Carpigiani with Quality System UNI EN ISO 9001. All specifications mentioned must be considered approximate; Carpigiani reserves the right to modify, without notice, all parts deemed necessary.
